1.Usage: This equipment is drawing a low, medium and high carbon steel is the ideal equipment, but also drawing copper, aluminum and other nonferrous metal and alloy wire, widely used in wire and cable, building components, galvanized iron wire, metal net, nail factories, mines and other drawing purposes.

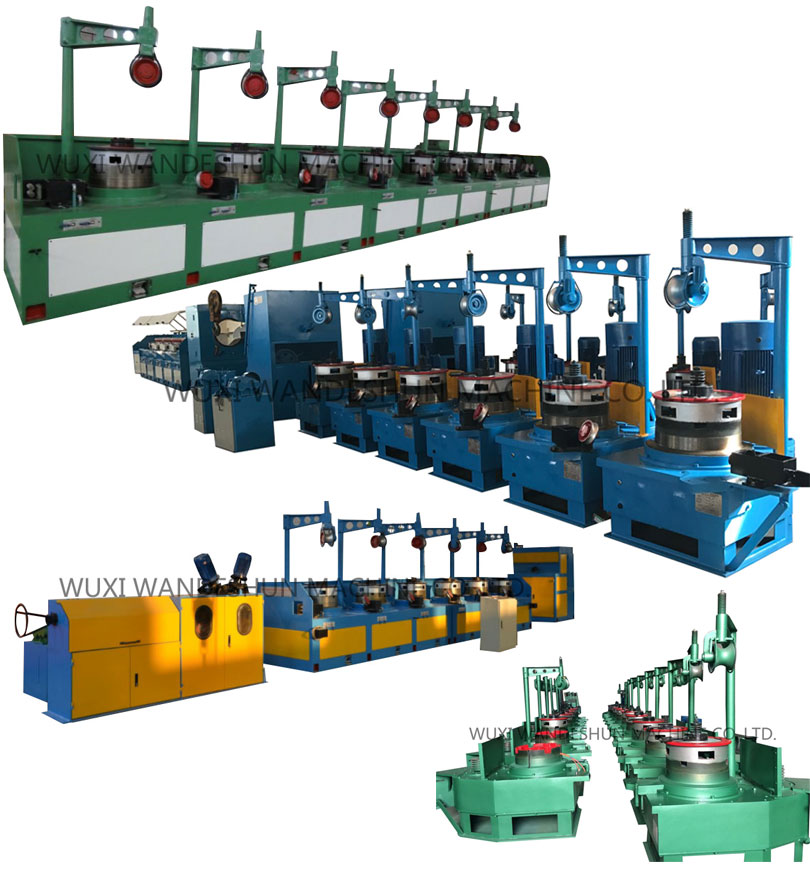

2.Structure: The equipment consists of main reduction box, die box, roller frame, frame and electrical lines from the control system, etc.. Roll each drawing by JZT series or Y series motor rotation by the gear coupling two different gear ratio of the cylinder, so that rotating drum work, drawing drum for the vertical, installed on the cover of the box, gears lubricated with oil immersion. Drum wall cooling equipment to reduce the transmission line wire drawing rolls after the remnants of the surface of the heat. The machine can be achieved to move the linkage，in the operating position in front of the reel, equipment security parking agency.
| Model |
LW-1-6/560 |
LW-1-7/450 |
LW-1-6/350 |
| Strength of the material drawn |
δb≥110kg/mm²以上 |
128kg/mm² |
δb≥140kg/mm² |
| Max wire diameter |
6.5mm |
3.4mm |
2.5mm |
| Min outlet diameter |
2mm |
1mm |
0.75mm |
| Drawing dies |
1-6 |
1-7 |
1-6 |
| Diameter of capstan |
/560 |
/450 |
/350 |
| Average compression ratio |
30%左右 |
20%左右 |
21%左右 |
| The total compression ratio |
78-88.5%左右 |
77.90% |
78%左右 |
| Finished max speed reel |
245m/min |
346.9m/min |
200m/min |
| Motor power |
18.5-30kw |
7.5-11kw |
7.5-11kw |
| Equipment total(about) |
2000kg |
1500kg |
1000kg |
| Dimensions |
1700×1150×1750mm |
1520×810×1700mm |
1400×800×1500mm | |
